Now you may be wondering what drone goggles are? Drone goggles are eyewear that gives the person flying the drone a first-person view of where the drone flies. In this article, we will discuss the top FPV drone goggles. After a deep research, we share with you a list of top five fpv drone goggles includes fpv goggles from companies like Samsung, Epson, and Skyzone.
Essential Terms Regarding Drone Goggles
If you are new to drones, then here are explanations of important terminologies found regarding drones.
FOV or Field Of View:
Field Of View is at any given point how much of the world we can see. When using optical equipment for flying, such as FPV goggles and binoculars, we can only see a limited world. The field of vision range in FPV goggles is from 25% to 45%. FPV goggles, which cost higher than normal ones, tend to be better in quality and a higher FOV. When choosing your FPV goggles, make sure that the field of view is according to your needs.
Adjustable Interpupillary Distance FPV Goggles:
Interpupillary Distance or IPD is the distance between the center of the pupils between your eyes. The IPD technology is critical both in binoculars and FPV goggles. Each and everyone has a unique when it comes to our face shapes and the distance between our eyes.
The best FPV flying view google will position both of your eye pupils to be within the goggle’s exits of the glasses. Try not to buy fixed IPD goggles as they may not fit your eyes correctly. Due to that, the flying experience will not be pleasant either.
Glass Or Plastic FPV Optics:
If you wish to have better clarity and image quality, then glass FPV optics are the best option.
FPV goggles come with four main types of pixel resolutions: QVGA, VGA, SVGA, and FWVGA.
- QVGA has 320 x 240 pixels
- VGA has 640 x 480 pixels
- SVGA has 800 x 600 pixels
- FWVGA has 854 x 480 pixels
If you are looking for the highest FPV pixel resolution, then SVGA and FWVGA are the best options.
Automated Head Tracking:
FPV goggles come with automated head tracking. With this technology’s help, once your head movement monitored, and the signals get sent to your drone. As you move your head, the drone will follow the same direction. If you look down, the drone will follow the same path, and if you look right, then even it will do the same. This link between the head and the drone makes flying one even better with more flexibility. Almost all FPV goggles now come with automated head tracking.
FPV Goggles Receiver Module:
Depending on the FPV goggles you purchase, you must buy a Receiver Module along with it. There are three options available for Receiver Modules; 1.3 GHz, 2.4 GHz, and 5.8 GHz. Before purchasing a Receiver Module, make sure to read the instruction manual to know the compatibility between your FPV goggles and the Receiver Module.
For instance, the Fat Shark Dominator V3 is compatible only with NexwaveRF modules. Receiver Modules are easy to install, in most cases, what one must do is open the door panel on the side of the FPV goggles, insert the receiver module, and then close the door panel back in place.
Top Five FPV Drone Goggles

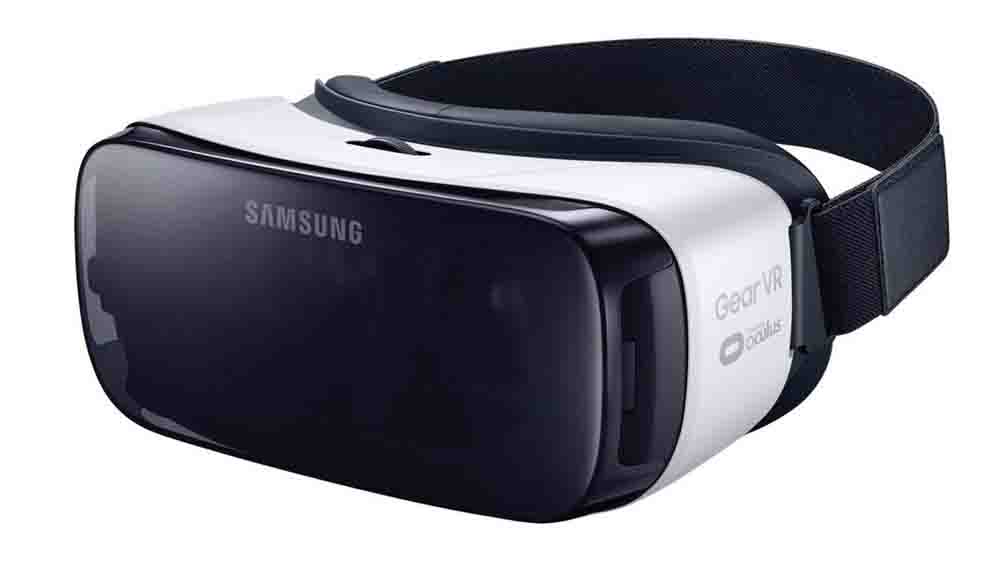

Samsung Gear VR Goggle:
The Samsung Gear VR Goggle with a super AMOLED display, wide field of view, precise head-tracking, and low latency brings reality to the virtual. It is an extraordinary Drone FPV Goggle which works seamlessly with Galaxy smartphones. Once you have slipped your phone into them, you can take on the world and beyond.
For the best experience of FPV Drone Goggles, a comfortable headset is a must. To give their customers the best experience, the Samsung Gear VR has a spacious interface. It is now 19% lighter compared to the previous model and with its larger touchpad. One receives a simple and more accurate control.
It has a 101º Lens FOV, 62 mm IPD fixed, Ergonomic design. USB Type-C & Micro USB phone connection is available. It is compatible with Galaxy Note8, S8, S8+, S7, S7 edge, Note5, S6 edge+, S6, S6 edge phones.
With excellent value, the Samsung Gear VR Goggle is a mighty FPV Drone Goggle.
BOSCAM GS922 Drone Goggles:
With its 854 by 480 resolution display screen, which ensures a high-quality image, the BOSCAM GS922 Drone Goggles are one of the best FPV Goggles in the market. It comes with an installed SD card and has a great feature of video recording. Consumers agree that it provides an excellent fly visual experience.
The great features of BOSSCAM GS992 Drone Goggles include:
- Brightness: adjustable
- Contrast: adjustable
- Saturation: adjustable
- Storage: SD Card (not included)
- 30° FOV wide angle
- 5.8 GHz frequency dual diversity input
- 32 channels free to choose from
- 854 x 480 resolution
- Automatically searching for the best signal channel
- Records and replay video
- Antenna port: RP-SMA
- Video: 640 x 320 (30 FPS)
Epson Moverio BT-300 FPV Goggles:
Probably the best FPV Goggles that work with DJI drones are the Epson Moverio BT-300 FPV smart glasses. Not only are they compatible with DJI drones, but they also redefine First Person View technology. Due to its transparent display, it is easy to view your drone’s video feed and key flight statistics, while keeping the UAV insight.
Without blocking the view, one can receive real-time display without getting their look stuck. Consumers ensured to have a safe, distraction-free flight experience. The ultra-light and comfortable Epson Moverio BT-300 FPV Goggle is one of the few third-party accessories that DJI endorse.
Here are the specifications of Epson Moverio BT-300 FPV Goggle:
- Supported Still Image Formats – JPEG, PNG, BMP, GIF
- Supported Audio Formats – WAV, MP3, AAC
- Internal Memory – Main memory 2 GB and 16 GB user memory
- Battery Life – Approximately 6 hours
- Camera – 5 million pixels
- Sensors – GPS/geomagnetic sensor/accelerometer sensor/gyroscopic sensor/ambient light sensor
- Diagonal Angle Of View – approximately 23 degrees
- Virtual Screen Size – 40-inch support (virtual viewing distance of 8.2 feet (2.5 meters)
- Color Resolution – 24 bit (16.7 million colors)
- Supported Moved Formats – MP4 (MPEG-4/H.264+AAC), MPEG-2 (H.264+AAC), VP8
- Bluetooth – V4.1 (Bluetooth Smart Ready Class2)
- Panel Size – 0.43 inches (wide panel 16:9)
- Panel Pixel Count – 921,600 (1280 x 720) x 3
- Material – Si-OLED

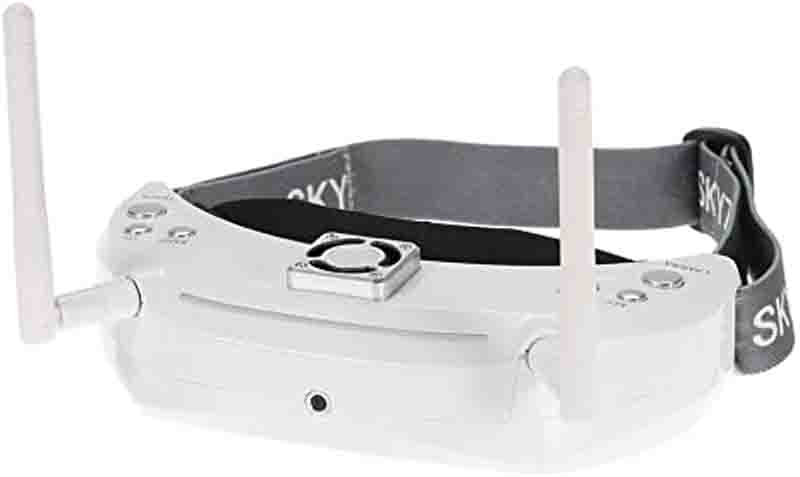

Skyzone SKY03 3D FPV Drone Goggle:
One of the best FPV Drone Goggles by Fat Shark, the Skyzone SKY03 3D FPV Drone Goggles are pretty impressive.
Here are the features for this FPV Drone Goggles.
- Binocular display, SVGA 800 x 600 resolution, gives you an excellent experience.
- Multiple LED light effect mode support.
- Intimate design with high-comfort facial sponge giving a soft and comfortable feel
- Built-in heat-sink fan to prevent fogging
- Head tracking
- ISM 5.8 GHz 48 channel diversity receiver with dual antennas meaning the receiving signal is more stable and fast
- Support HDMI, DVR, AV in / out
- Built with a front camera that enables you to observe surroundings easily without taking off your goggles
- Up to 43 degrees of FOV

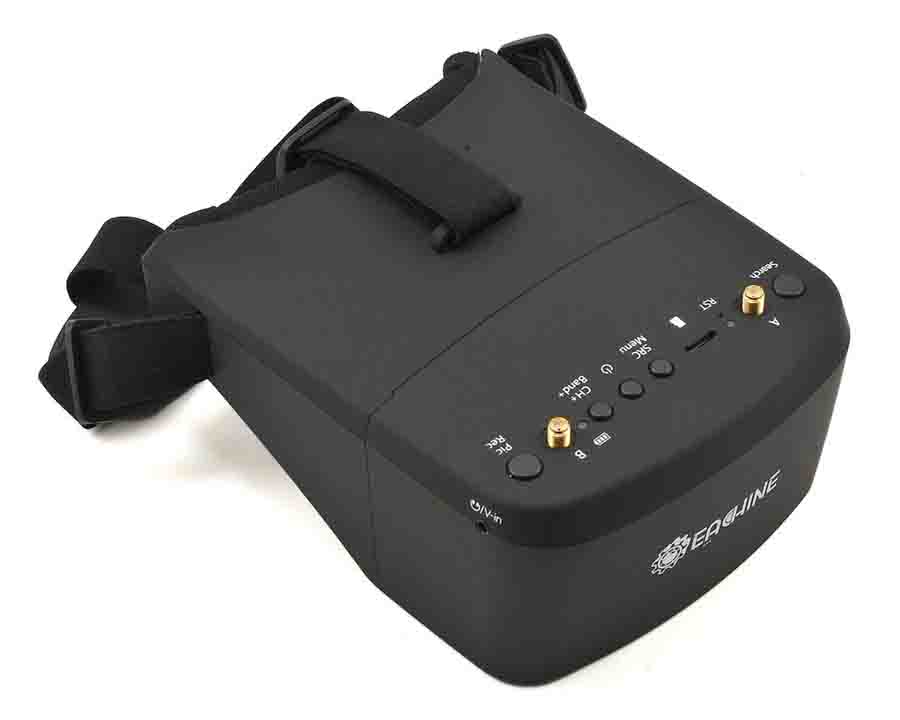

Eachine EV800D FPV Drone Goggles:
One of the most popular Drone Goggles, the Eachine EV800D FPV Drone Goggles, is a tremendous value. It has 6 Leaf RHCP 5 dBi antennas and a 16 dBi Panel antenna and a built-in 5.8 GHz 40 channel diversity receiver. With the help of these antennas, the live video signal automatically switches to the best antenna.
Here are some of its features:
- 5 Inch HD high brightness LCD specially tuned for FPV racing
- 800 x 480 resolution
- Two systems (Display/Record duo core separated chipsets ) ensure no delay in displaying and no frame lost in recording
- Advanced auto-searching function and the working frequency show on screen
- 92% transparent lens adopted, no distort, no blur on the edge of the screen
- Super-wide FOV visible angle up to 82º
- 40 channel diversity race band with auto searching
- Built-in super HD DVR which can record up to 720 x 576 resolution
Best Advice For Buying Drone Goggles
Before buying your FPV drone, goggles make sure that they have a Field Of View of at least 35% adjustable IPD, VGA or SVGA resolution, glass optics, and digital head tracking. Walkera drones have their range of FPV goggles. Make sure to check the website of the brand from which you are buying your drone. They will have information on the particular FPV drone you are planning to buy. Buying the best in your price range will make the experience worth every penny. One cannot enjoy the experience of flying a drone with the wrong pair of FPV goggles.
